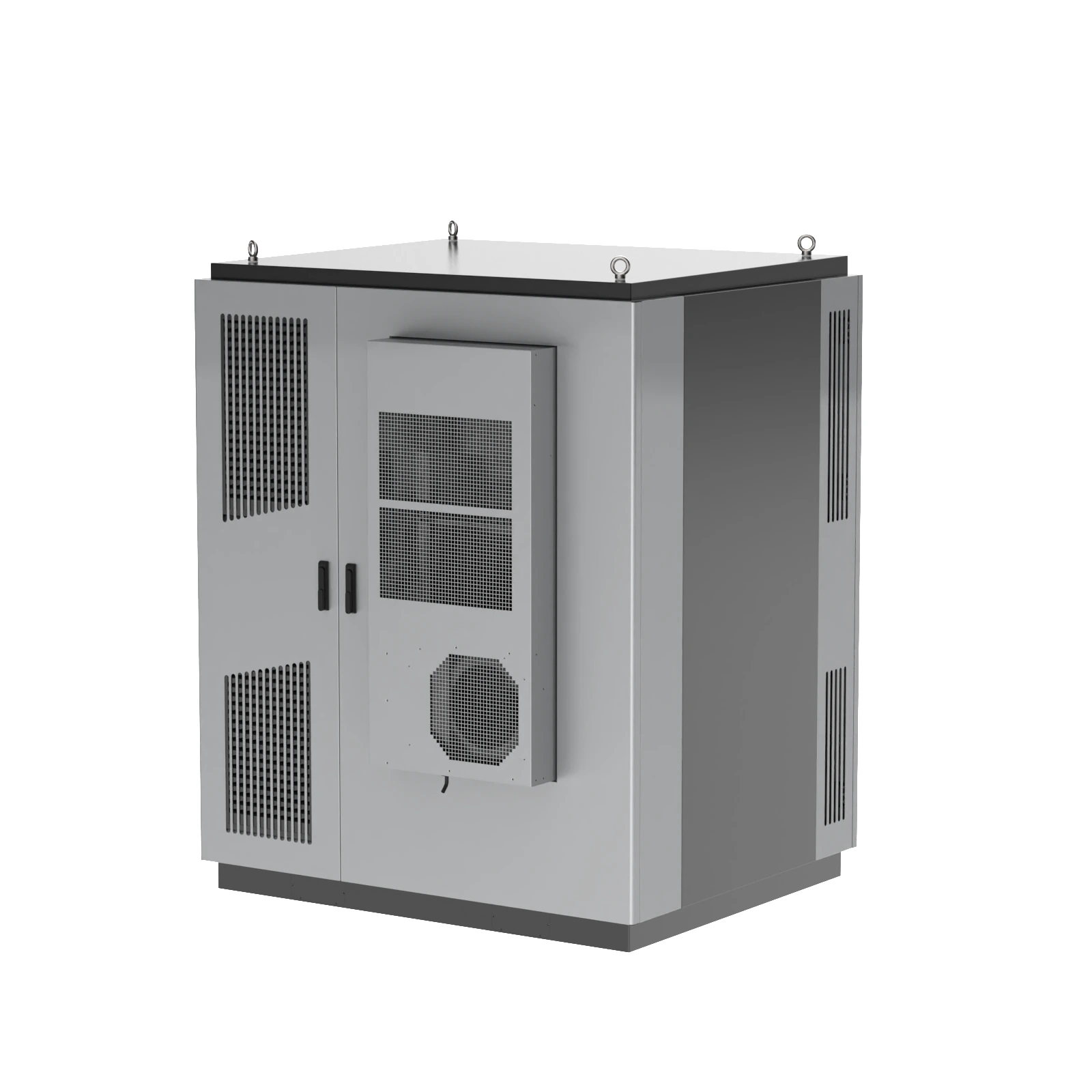

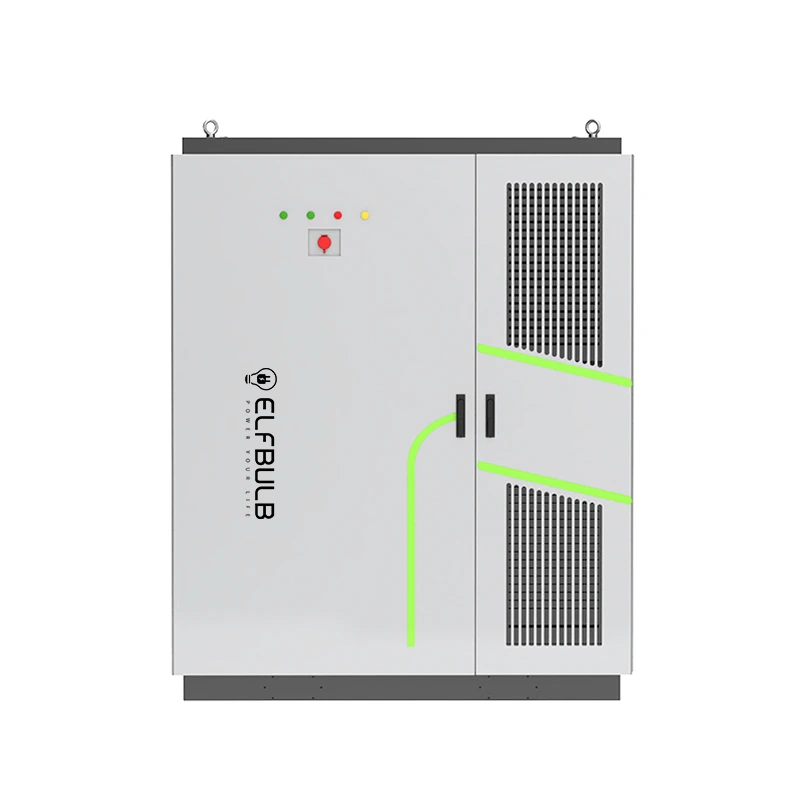

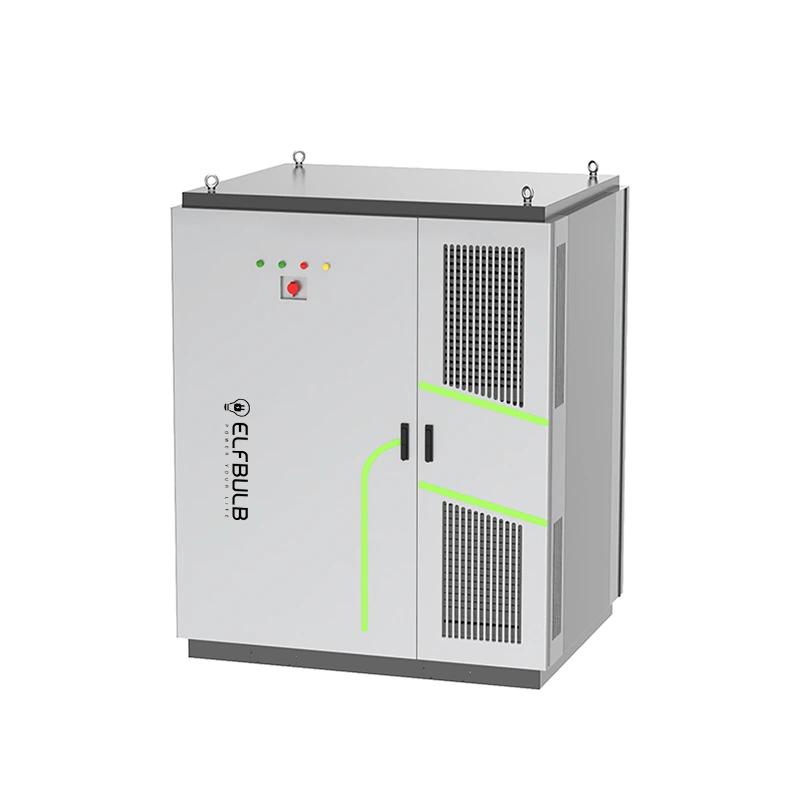

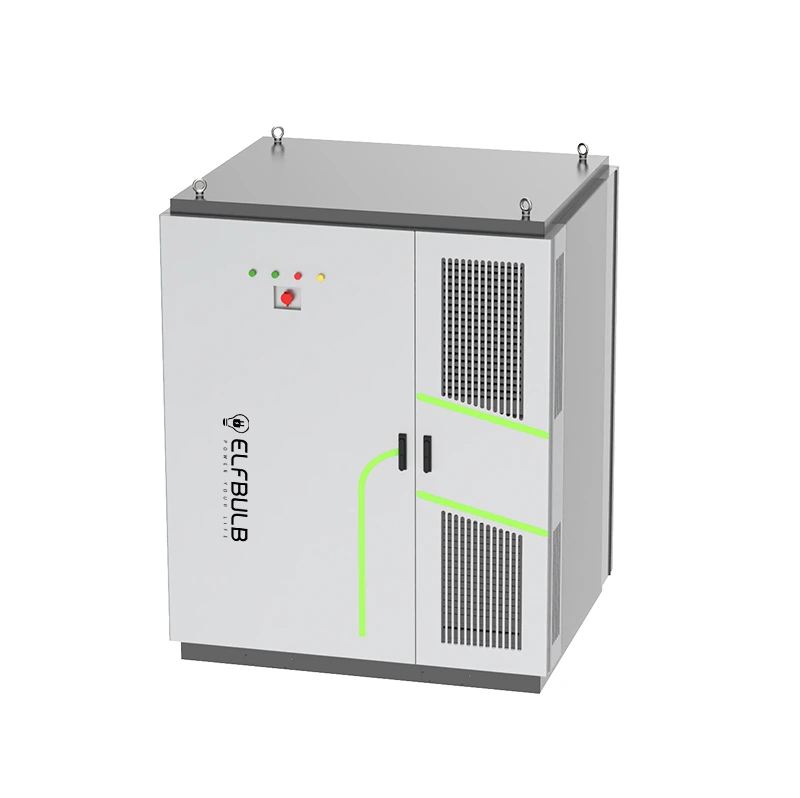

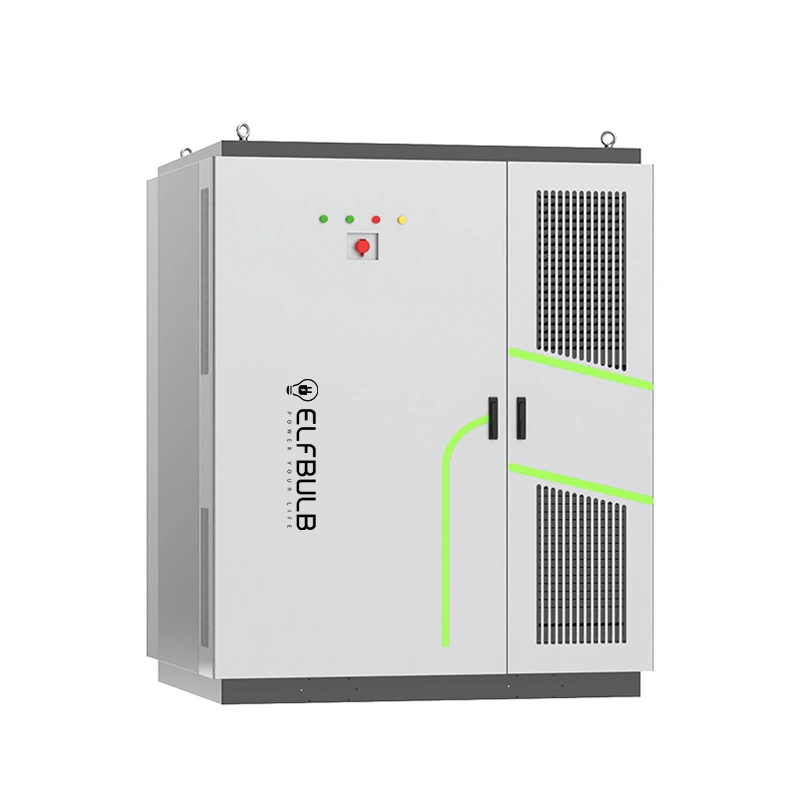

215KWH Air Cooling Lithium Ion Battery Energy Storage System 1C
- Air cooling
- Easy installation,operation and maintenance
- User-Friendly
- Seamless switching
- Long operationg life,support full power charge and discharge
- Safe and reliable
- Flexible configuration
- MPPT optional: according to the actual demand
- Wind power storage
- Optical storage
- Off-Grid island
- Nomadic farm
- Off-Grid Mine
- PV station + ESS
- Villages without electricity
Product Specifications
Technical specification for 1 hours backup(1C)
| MODEL | 30KW-100KWH | 50KW-100KWH | 50KW-112KWH | 50KW-125KWH | 50KW-140KWH | 50KW-241KWH |
| DC(Battery) | ||||||
| Cells Type | LiFePO4 Lithium Iron Phosphate | |||||
| Cell specfication | 3.2V280Ah | 3.2V280Ah | 3.2V280Ah | 3.2V280Ah | 3.2V306Ah | 3.2V314Ah |
| Configuration of Battery | 112S1P | 112S1P | 112S1P | 140S1P | 140S1P | 240S1P |
| Single Battery Pack | 51.2V280AH/14.336kWh | 64V280AH/17.920kWh | 64V306AH/19.584kWh | 64V314AH/20.09kWh | ||
| Battery Module | 7 Packs | 7 Packs | 7 Packs | 7 Packs | 7 Packs | 12 Packs |
| Battery Capacity | 100kWh | 100kWh | 112kWh | 125kWh | 137kWh | 241kWh |
| Max. Power | 30KW | 50KW | 50KW | 50KW | 50KW | 50KW |
| Max. Current | 140A | 140A | 140A | 140A | 152A | 157A |
| Battery Rated Voltage | 358.4V | 358.4V | 358.4V | 448V | 448V | 768V |
| Battery Voltage Range | 313.6V-403.2V | 313.6V-403.2V | 313.6V-403.2V | 392V-504V | 392V-504V | 672V-876V |
| AC(On / Off Grid) | ||||||
| Max. Power(kVA) | 33KVA | 55KVA | 55KVA | |||
| Active Power(kW) | 30KW | 50KW | 50KW | |||
| Rated Voltage(V) | 400V | 400V | 400V | |||
| Rated Current(A) | 43A | 86A | 86A | |||
| Voltage Range | 320V-460V | 320V-460V | ||||
| Rated Frequency | 50/60Hz | 50/60Hz | ||||
| Range of Frequency | 45-55/55-65Hz | 45-55/55-65Hz | ||||
| THDI | <3% | <3% | ||||
| Power factor | 1.0(Adjustable from 0.8 leading to 0.8 lagging) | 1.0(Adjustable from 0.8 leading to 0.8 lagging) | ||||
| AC System | 3 phase 4 wires | 3 phase 4 wires | ||||
| Overload capability | 110% | 110% | ||||
| Solar Side(PV) | Optional | |||||
| Max. Power | 100KW(30KW*2) | |||||
| High Volage side Voltage | 560V-1000V | |||||
| High Voltage side Current | 80A | |||||
| Low Voltage side Voltage | 500V-900V | |||||
| Low Voltage side Voltage | 100A | |||||
| Uninterrupted Load(STS)） | Optional | |||||
| STS Power | 50KW | |||||
| STS Voltage | 400V 50HZ/60HZ | |||||
| Overload Power | 110% | |||||
| Shift Time | <20mS | |||||
| System operation stratege | ||||||
| Functional | Anti Backflow and Black Start | |||||
| Operation Mode Selections | Power peak shaving and valley filling, electricity price peak valley arbitrage, | |||||
| photovoltaic priority for electricity cost savings, | ||||||
| wind power generation priority for electricity cost savings, off grid power supply for remote areas | ||||||
| Scenerios | Photovaltaic and diesel storage project, Wind power and diesel storage project, Wind and photovoltaic | |||||
| diesel storage project, Charging Station + Energy storage project, On-grid electricity selling project | ||||||
| Specificaiton | ||||||
| Cabinet Size(W*D*H) | 1696/1408/2055mm | |||||
| Weight | ≤2.7 T | |||||
| Max. cycle efficiency | ≥90% | |||||
| IP rating | IP55 | |||||
| Auxiliary Power Supply | Self-powered, Externally powered | |||||
| Corrosion resistance rating | C3/C5 | |||||
| Operating Humidity Range | 0%-100%(Non-condensing) | |||||
| Operating Temperature | -30℃-50℃(>45℃ derating) | |||||
| Max. Operation Altitude | 2000m | |||||
| Communication | Ethernet、485、CAN | |||||
| Communication Protocal | ModbusTCP | |||||
| Cooling method | Intelligency Air cooling | |||||
| Fire safety configuration | Smoke detector, Heat detector, Gas-based fire extinguishing system, | |||||
| Pressure relief valve, Pack-level fire protection, Cluster-level fire protection, | ||||||
| Water-based fire protection, Automoatic pressure relief | ||||||
| MPPT Optional: According to the actual demand | ||||||
