Megawatt-scale energy storage systems are an indispensable key component of modern power systems. They are like energy “reservoirs”, playing an important role in the power grid by peak shaving and valley filling, stabilizing the power grid, and improving energy utilization.
Release stored electrical energy during peak electricity consumption to relieve power grid pressure; store excess electrical energy during low electricity consumption periods to improve power grid operation efficiency.
Smooth out the fluctuations of renewable energy sources such as wind power and photovoltaics, provide auxiliary services such as frequency and voltage regulation for the power grid, and enhance power grid stability.
Store the originally wasted electrical energy and release it when needed, reduce energy waste and improve energy utilization efficiency.
Provide emergency power supply when the power grid fails or power is cut off, ensuring the continuous operation of important loads.
Grid frequency regulation and peak shaving
Wind farms or photovoltaic power stations
Large factories, data centers, hospitals,hotels etc.
Remote areas or islands

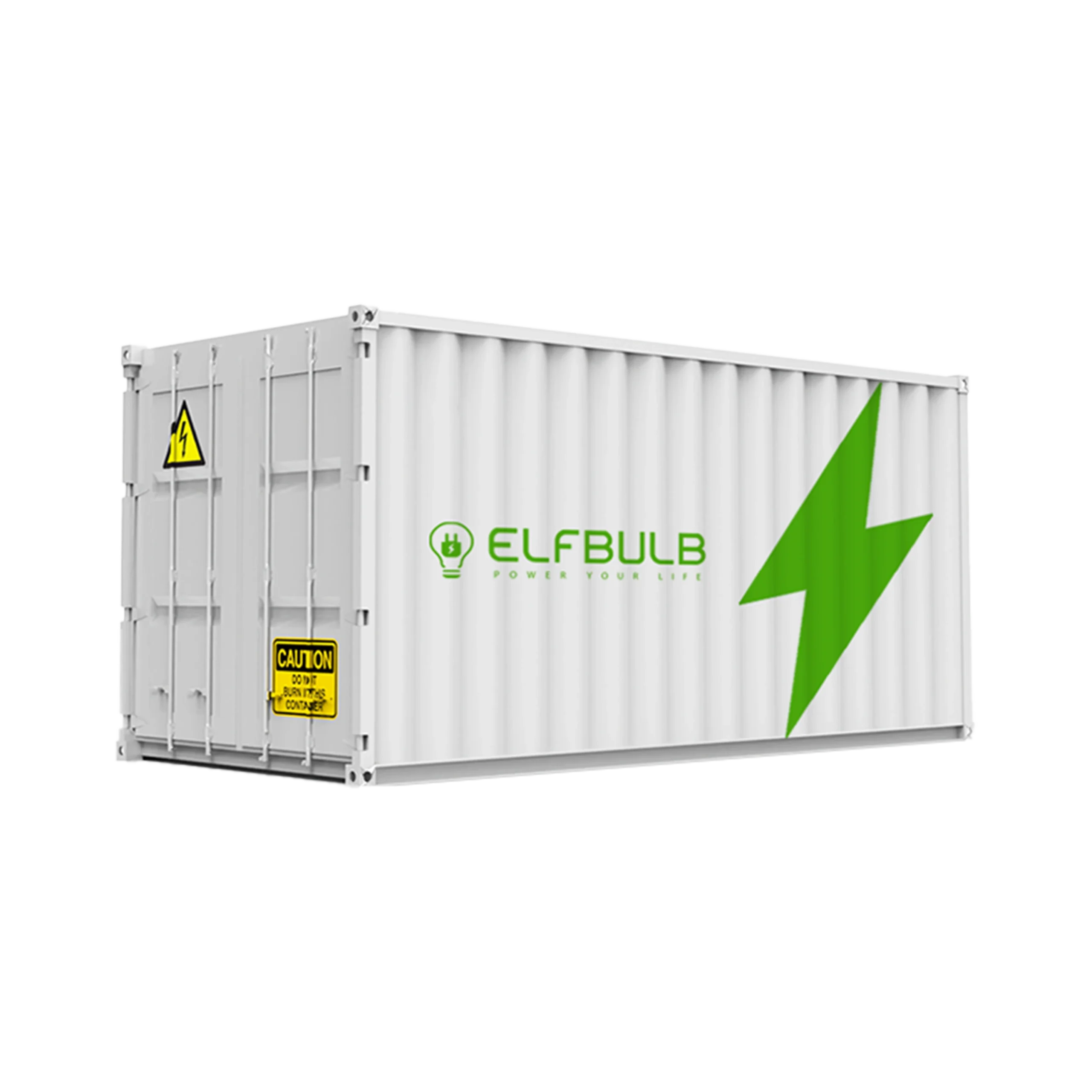

Technical parameter table of DC energy storage container below DC1500V adapted to AC690V AC side
| MODEL | 20FT-2064KWH | 40FT-4128KWH | 20FT-3054KWH | 40FT-5345KWH |
| DC System | ||||
| Cell type | Lithium ion phosphate | |||
| Cell specifications | 3.2V280AH | 3.2V314AH | ||
| System battery configuration | 384S6P | 384S12P | 380S8P | 380S14P |
| Battery capacity | 2064kWh | 4128kWh | 3054kWh | 5345kWh |
| Maximum power | 1000KW | 1500KW | 1500KW | 2500KW |
| Maximum current | 840A | 1680A | 942A | 2198A |
| Battery rated voltage | 1228.8V | 1216V | ||
| Battery voltage range | 1075V-1382V | 1064V-1368V | ||
| Battery Cluster | ||||
| Battery configuration | 384S1P | 380S1P | ||
| Battery capacity | 344.064kWh | 381.824kWh | ||
| Maximum power | 172KW | 190KW | ||
| Maximum current | 140A | 157A | ||
| Battery rated voltage | 1228.8V | 1216V | ||
| Battery voltage range | 1075V-1382V | 1064V-1368V | ||
| Battery Module | ||||
| Battery configuration | 16S1P | 20S1P | ||
| Battery capacity | 14.336kWh | 20.096kWh | ||
| Maximum power | 7KW | 10KW | ||
| Maximum current | 140A | 157A | ||
| Battery rated voltage | 51.2V | 64V | ||
| Battery voltage range | 44.8V-57.6V | 56V-72V | ||
| Battery Cell | ||||
| Nominal voltage/capacity | 3.2V/280Ah | 3.2V/314Ah | ||
| Nominal energy | 896Wh | 1004.8Wh | ||
| Max. continuous | 896W | 502W | ||
| charge and discharge power | ||||
| Rated charge and discharge power | 448W | 502W | ||
| Max. charge and discharge current | 280A | 157A | ||
| Rated charge and discharge current | 140A | 157A | ||
| General Parameters | ||||
| Cabinet size(w*d*h )mm | 6058*2436*2591 | 12192*2436*2591 | 6058*2436*2591 | 12192*2436*2591 |
| Weight | ≈21.5t | ≈41.6t | ≈28.8t | ≈49.6t |
| Maximum cycle efficiency | ≥95% | |||
| IP rating | IP55 | |||
| Auxiliary power supply | Self-powered/externally powered | |||
| Anti-corrosion level | C3-C5 | |||
| Working humidity range | 0 % – 100 % (no condensation) | |||
| Operating temperature range | -30 ℃ – 50 ℃ (> 45 ℃ derating) | |||
| Maximum working altitude | 2000 m | |||
| Battery cabinet cooling method | Intelligent air cooling | |||
| Fire safety configuration | Smoke detectors, temperature detectors, aerosol fire extinguishers, pressure relief valves | |||
| PACK level fire protection, cluster level fire protection, water fire protection, automatic pressure relief | ||||
| Communication | Ethernet, 485, CAN | |||
| Communication protocol | Modbus TCP/IP | |||
