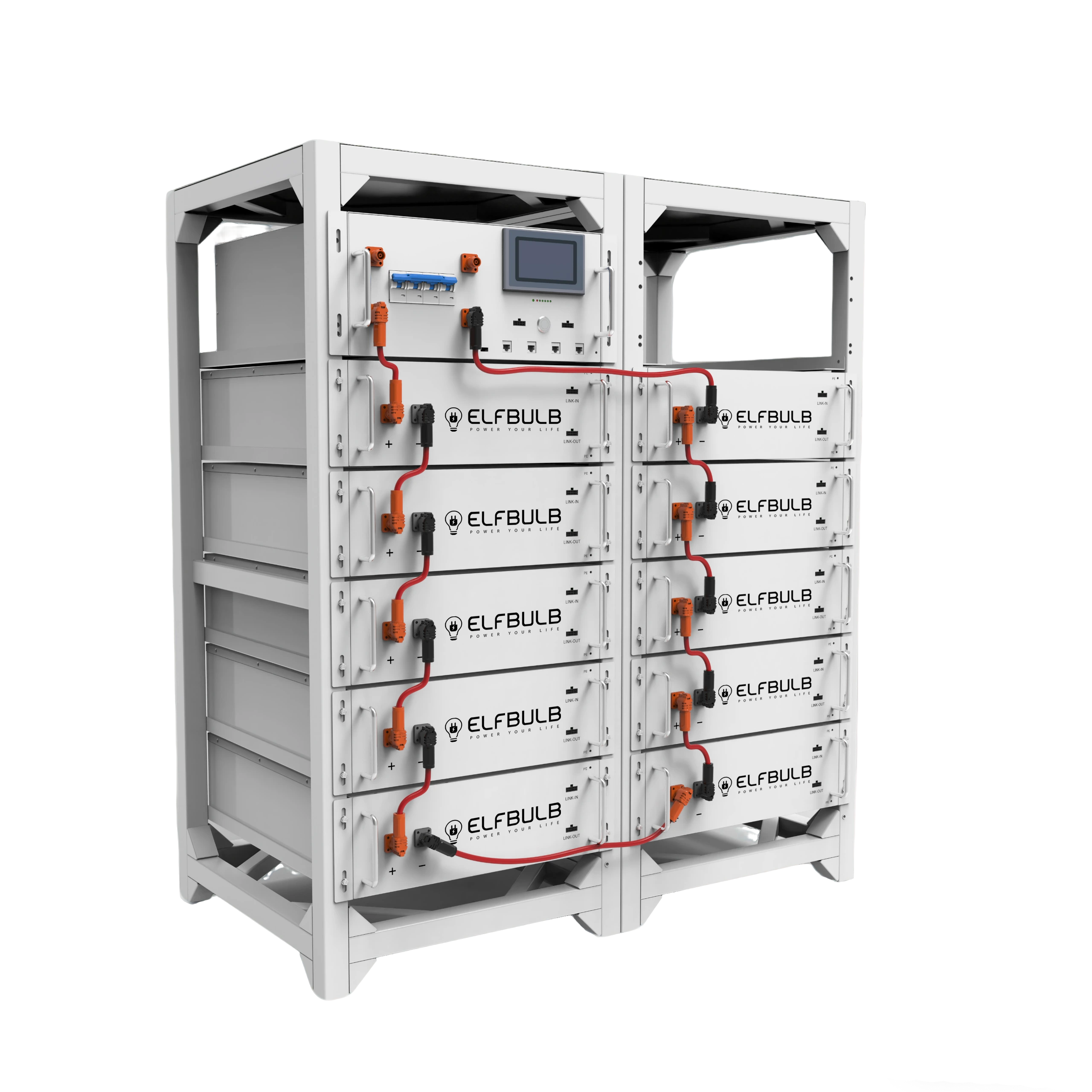

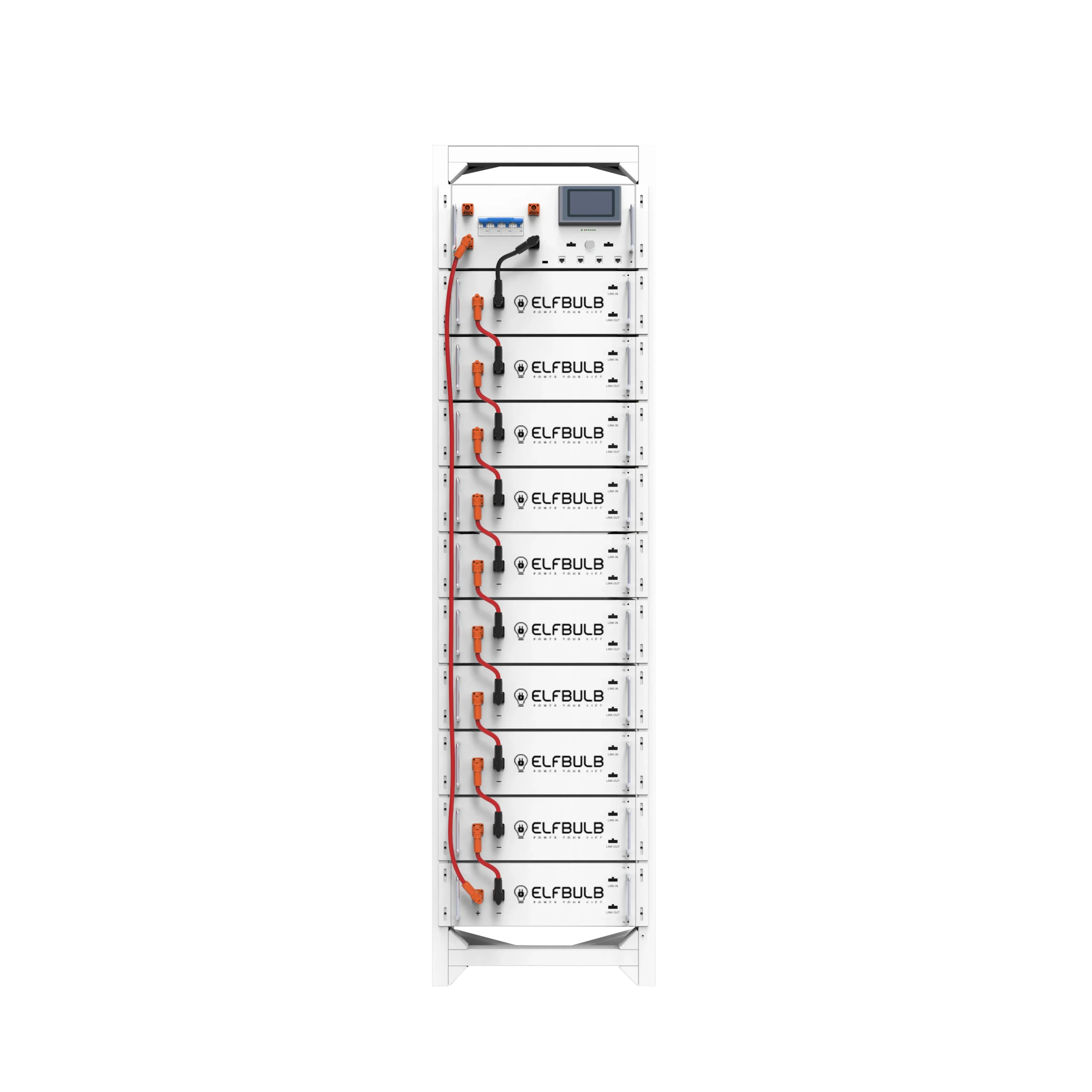

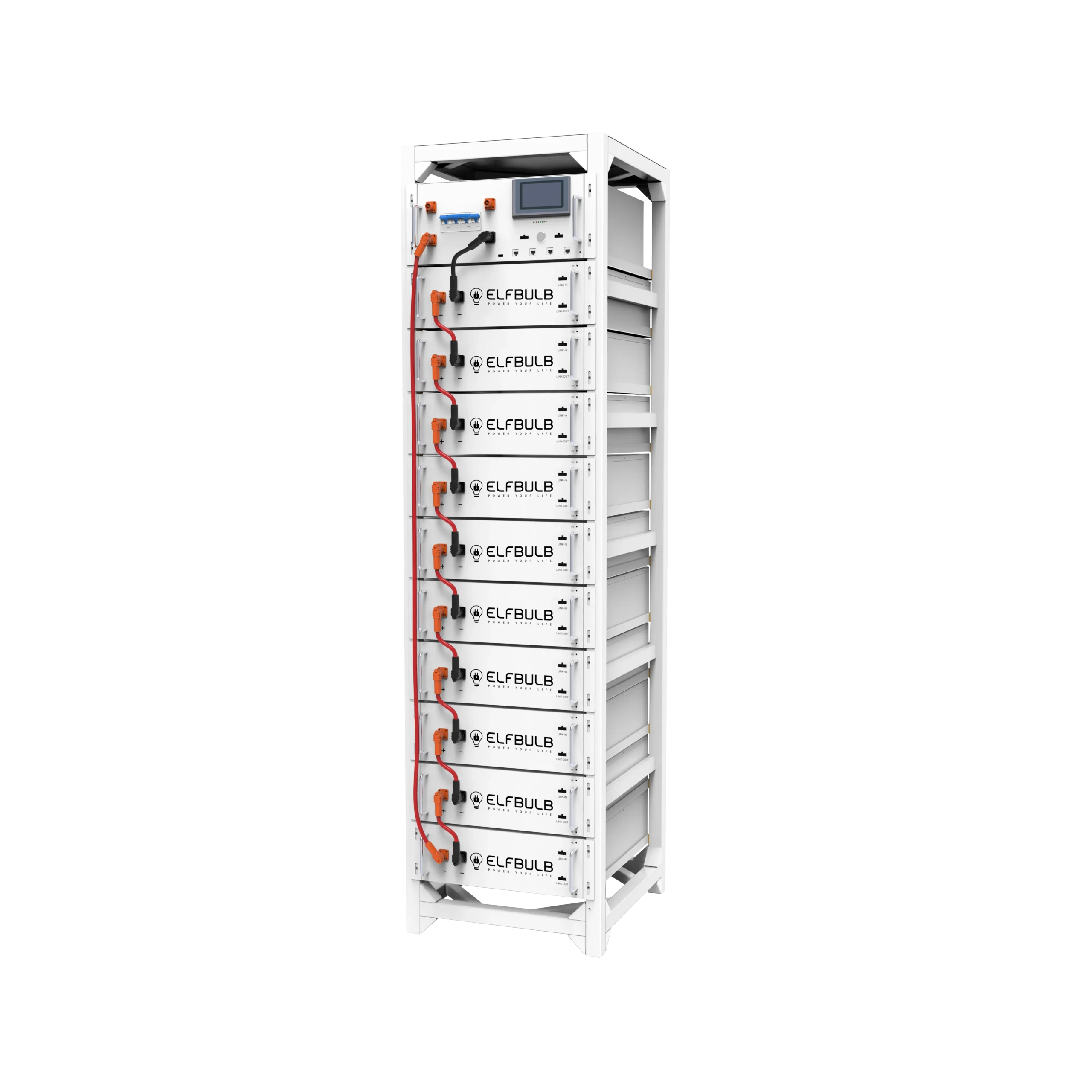

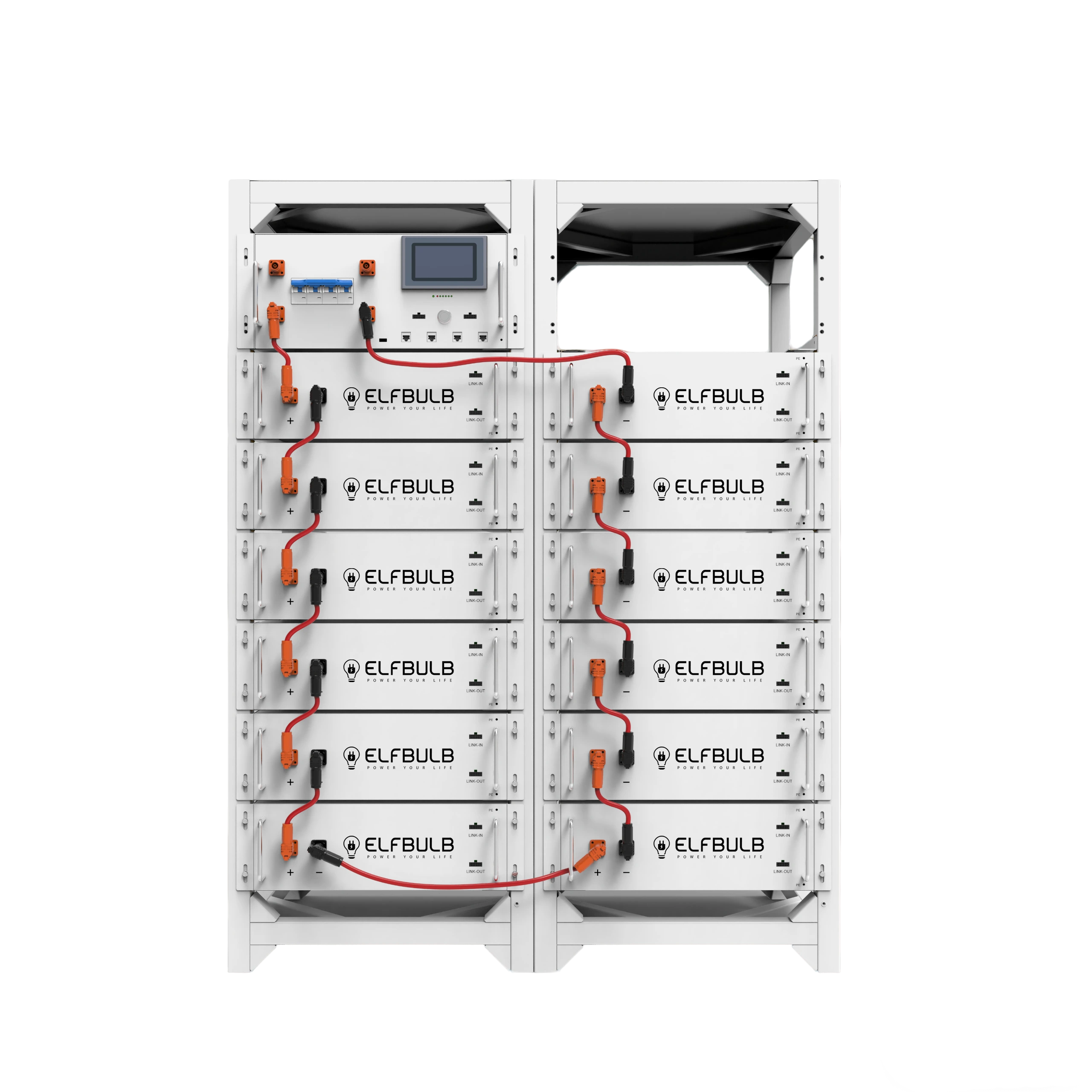

High Voltage Cabinet Lithium Battery System 50kWh 60kWh With HV Control Box

Parameters

Parameters of Standard Small Scale HV Cabinet Model
Cell Chemistry		LiFePO4
Module Energy(kWh)		5.12
Module Nominal Voltage(V)		51.2
Module Capacity(Ah)		100
Battery Module Qty In Series(Optional)		10	10	12
System Nominal Voltage(V)		512	512	614.4
System Operating Voltage(V)		440~548	440~548	528~700.8
System Energy(kWh)		51.2	51.2	61.44
Charge/Discharge Current(A)	Recommend	50
	Nominal	100
	Peak Discharge(2mins 25℃)	125
Working Temperature(℃)		Charge:0~55 / Discharge:-20~55
Communication Port		CAN / RS485
Humidity		5%~85%RH
Altitude		≤3000m
IP Rating of Enclosure		IP20
Dimension(mm)		5835332322	58310671223	58310671380
Installation Location		Rack Mounting
Storage Temperature(℃)		0~35
Recommend Depth of Discharge		90%
Cycle Life		25±2℃，0.5C / 0.5C，EOL70% ≥6000
Warranty		5 years
Certification		CE / UN38.3 / MSDS

Peak Shaving & Valley Filling: Lower Electricity Bills

Our system charges when electricity is cheap and discharges when it's expensive, significantly lowering your power costs. It also stores excess solar energy, boosting green energy self-consumption to accelerate your ROI.

Backup Power: Ensure Production

The system switches over in milliseconds during outages, ensuring continuous production. It also stabilizes voltage to protect sensitive equipment and extend its lifespan.

Smart Management: Easy and Hands-Off

Our cloud platform allows for real-time monitoring of the system. It operates automatically, requiring no manual intervention and enabling true hands-off operation.

Flexible Deployment: Scalable on Demand

Its modular design lets you scale capacity as needed, lowering your initial investment. The compact design also makes installation simple and space-efficient.
