| MODEL |

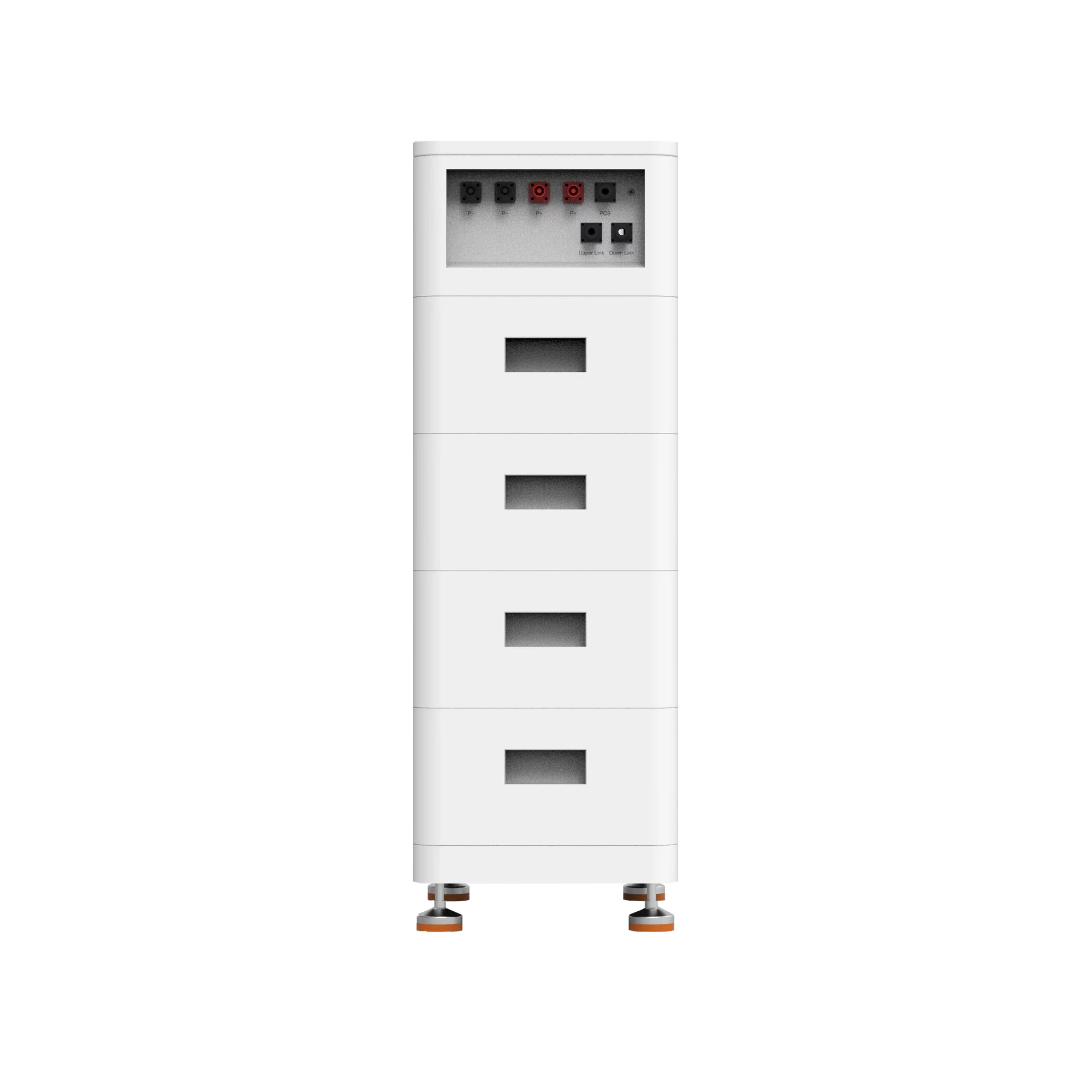

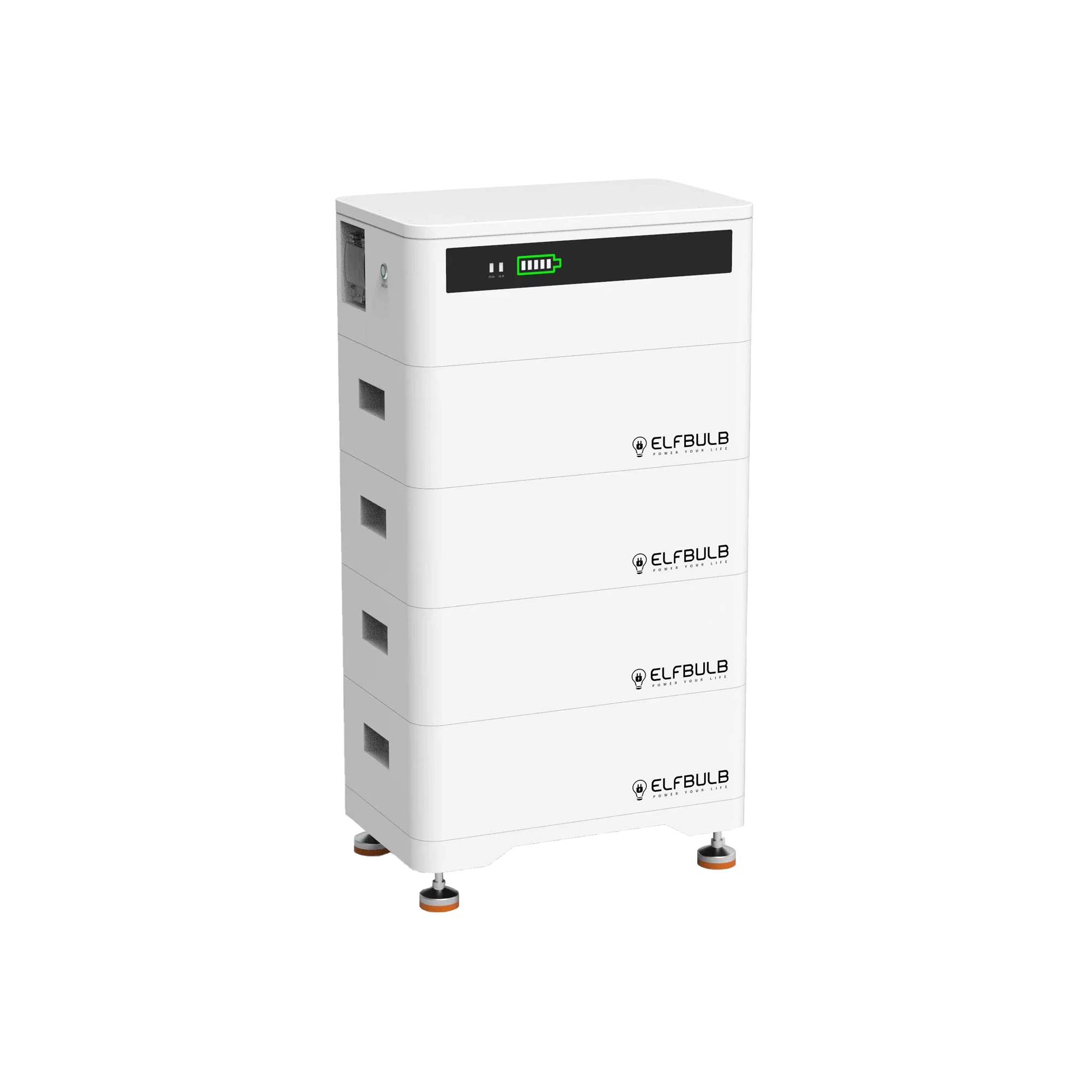

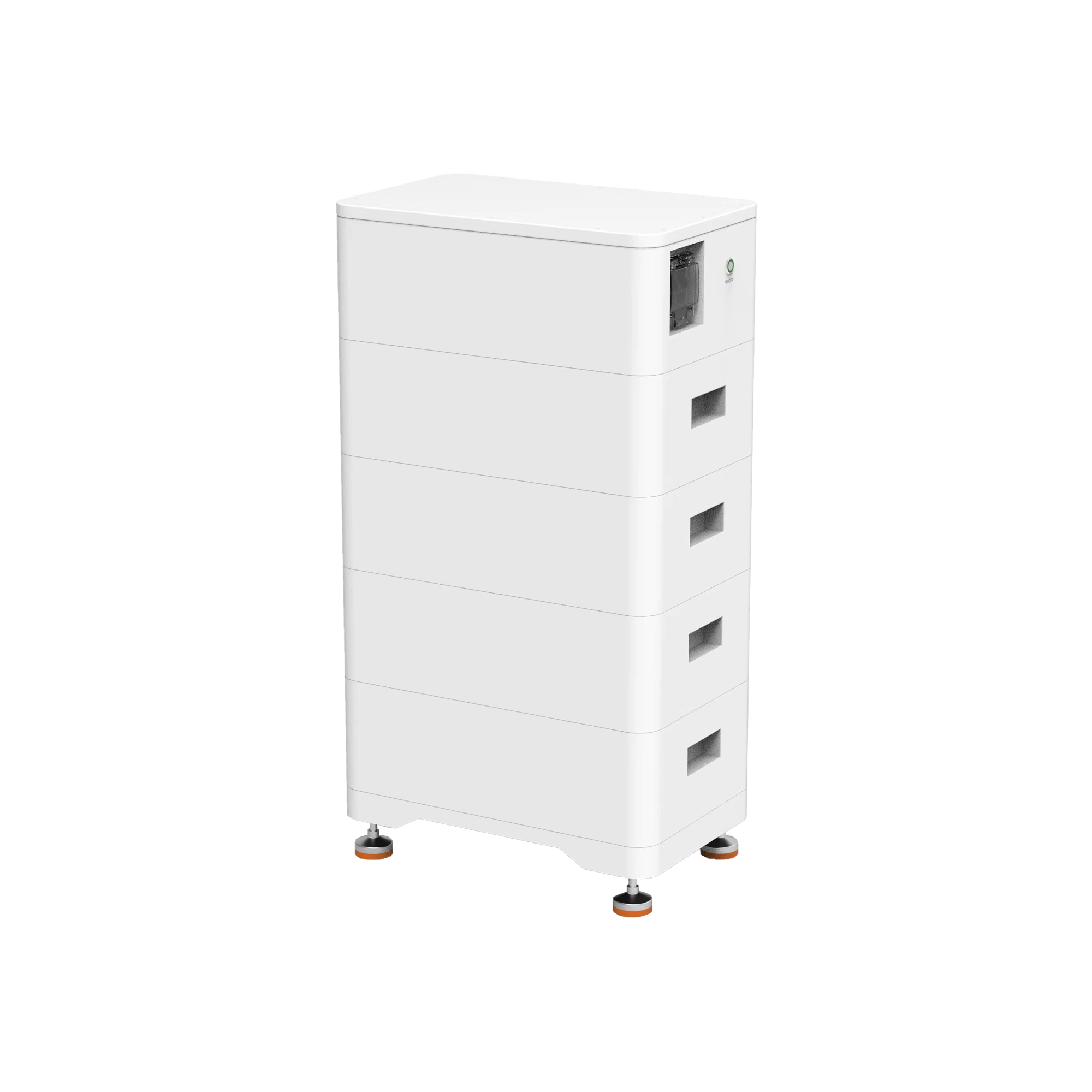

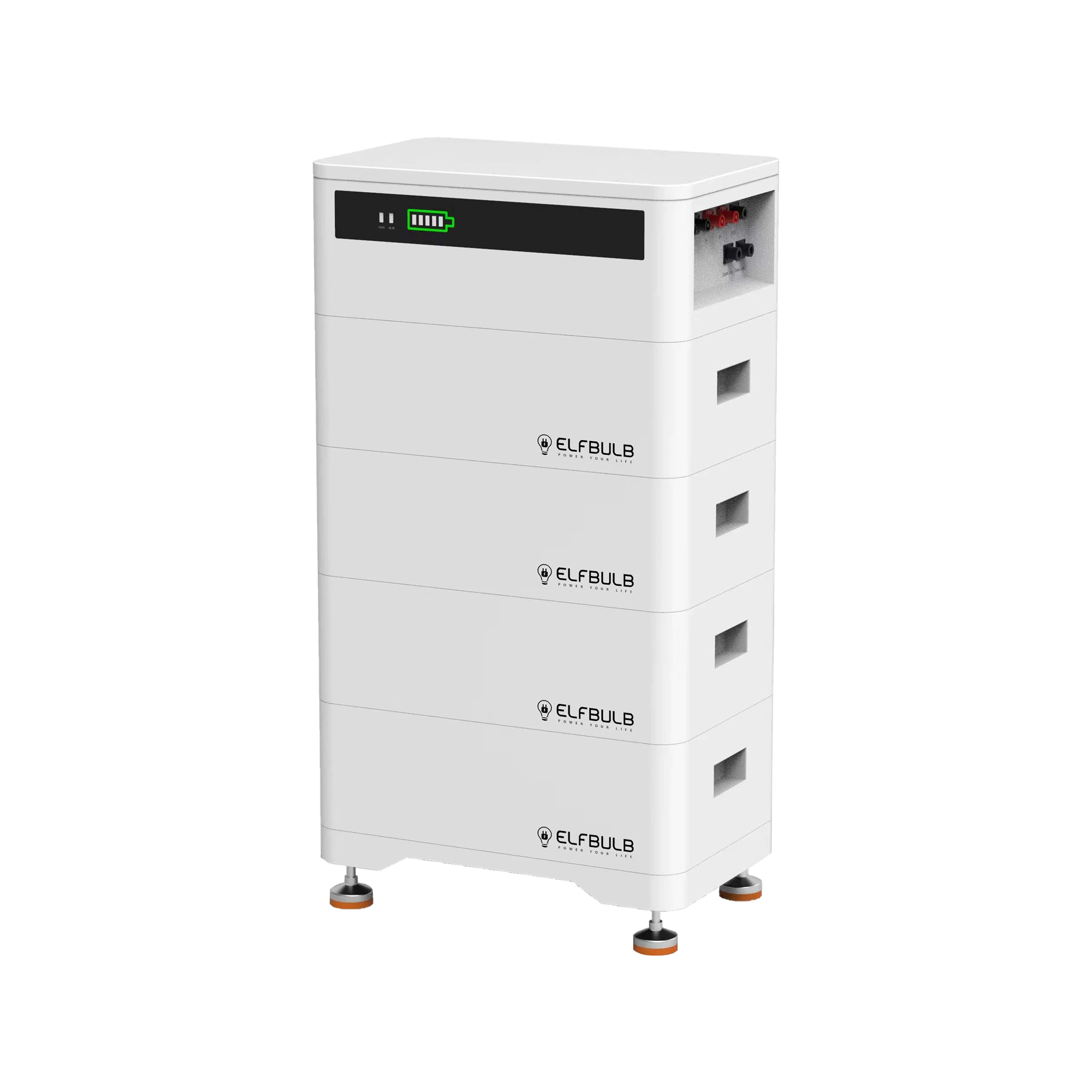

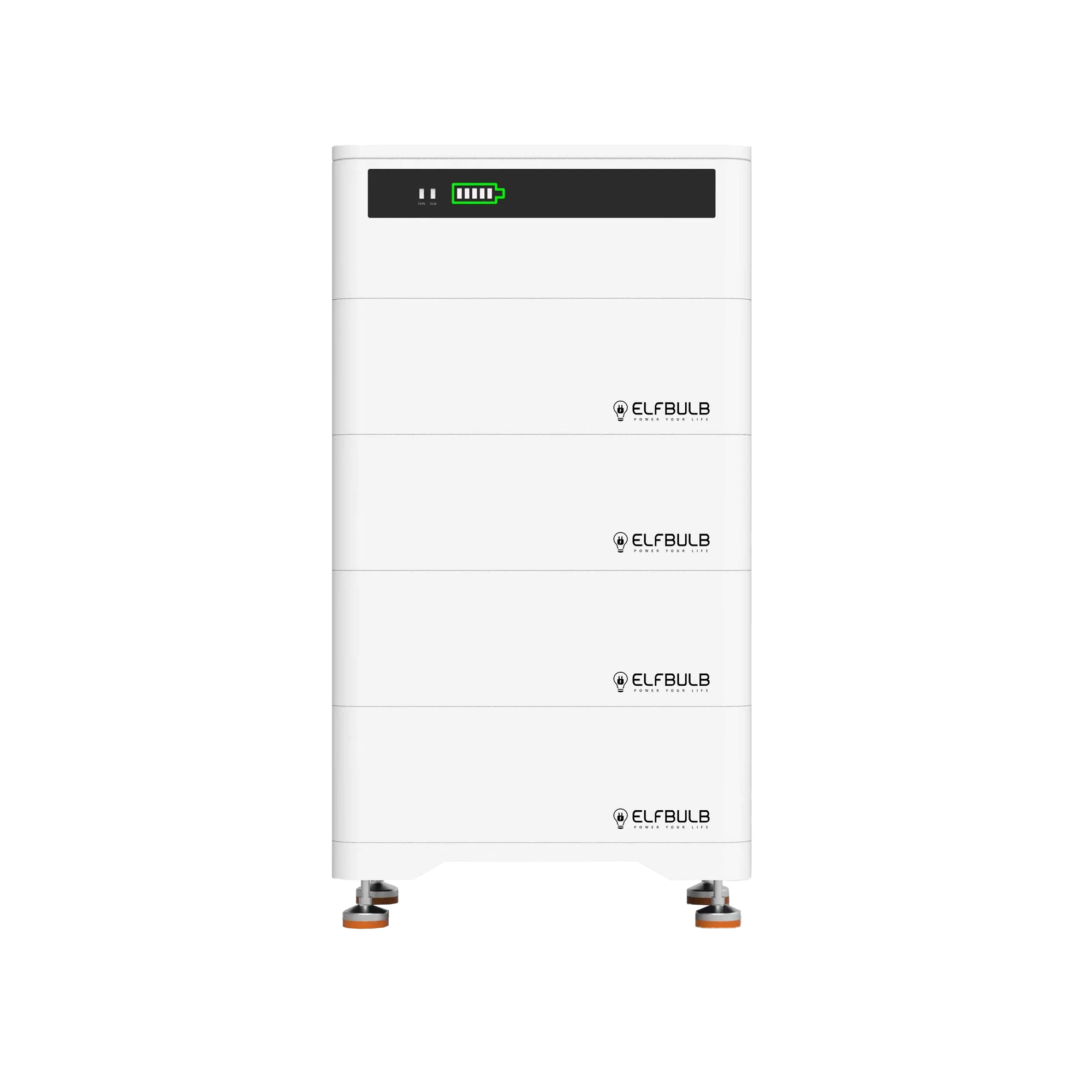

EBH-2 (High Voltage Lithium Battery) |
| Batteries materials |
Lithium iron phosphate |
| Series parallel mode (S series,P parallel) |
120S1P |
60~120S1P |
| Nominal voltage |
384V(Single module 96V) |
192~384V |
| Nominal capacity |
27Ah |
52Ah |
| Single battery pack capacity |
2592Wh |
| Size |
EBH-2: 560*350*975mm |
| Weight |
EBH-2: 30kg(Single module) |
| Parallel support |
Parallel terminals are supported |
| Output port mode |
Terminal |
| Charging way |
CC/CP/VP |
| Charging current |
0.2C(standard ) |
| Maximum charging current |
Max1C@25℃ |
| Discharge way |
CC/CPVP |
| Discharge current |
0.5C |
| Maximum discharge current |
Max1C @25℃ |
| Communication interface |
RS485/RS232/CAN |
| Charging operating temperature:charging |
Charging:0~+50℃ |
| Discharge operating temperature |
Discharge;-20~+55℃ |
