Home Energy Storage System

A Home Energy Storage System (HESS) is a device that integrates batteries, inverters, and control systems. It can store electricity generated from the grid or solar panels and supply power to your home when needed. HESS is designed to improve energy efficiency, reduce electricity costs, and provide backup power during outages, ensuring the stability and reliability of your home’s electricity supply.

  • Home
  • »
  • High Voltage Stacked LiFePO4 Battery Energy Storage 20KWH To 50KWH

Features

Self-sufficiency:

Storing solar power, reducing reliance on the grid, and lowering energy costs.

Backup Power

Providing electricity during power outages, ensuring basic household needs are met.

Peak Shaving and Valley Filling

Charging during off-peak hours when electricity prices are low and discharging during peak hours when prices are high to save on electricity bills.

Smart Control

Optimizing energy use based on weather conditions, consumption habits, and other factors through a smart home system.

Application scenarios

Daily power use

HESS can provide power for everyday household needs, meeting the electricity demands of lighting, appliances, and other devices.

Emergency power

During power outages, HESS can provide emergency power to the home, ensuring the operation of critical equipment.

Solar power systems

HESS can be used in conjunction with solar panels to store excess solar energy, enabling energy self-sufficiency.

Electric Vehicle Charging

HESS can provide power for charging electric vehicles, reducing charging costs.

Specifications

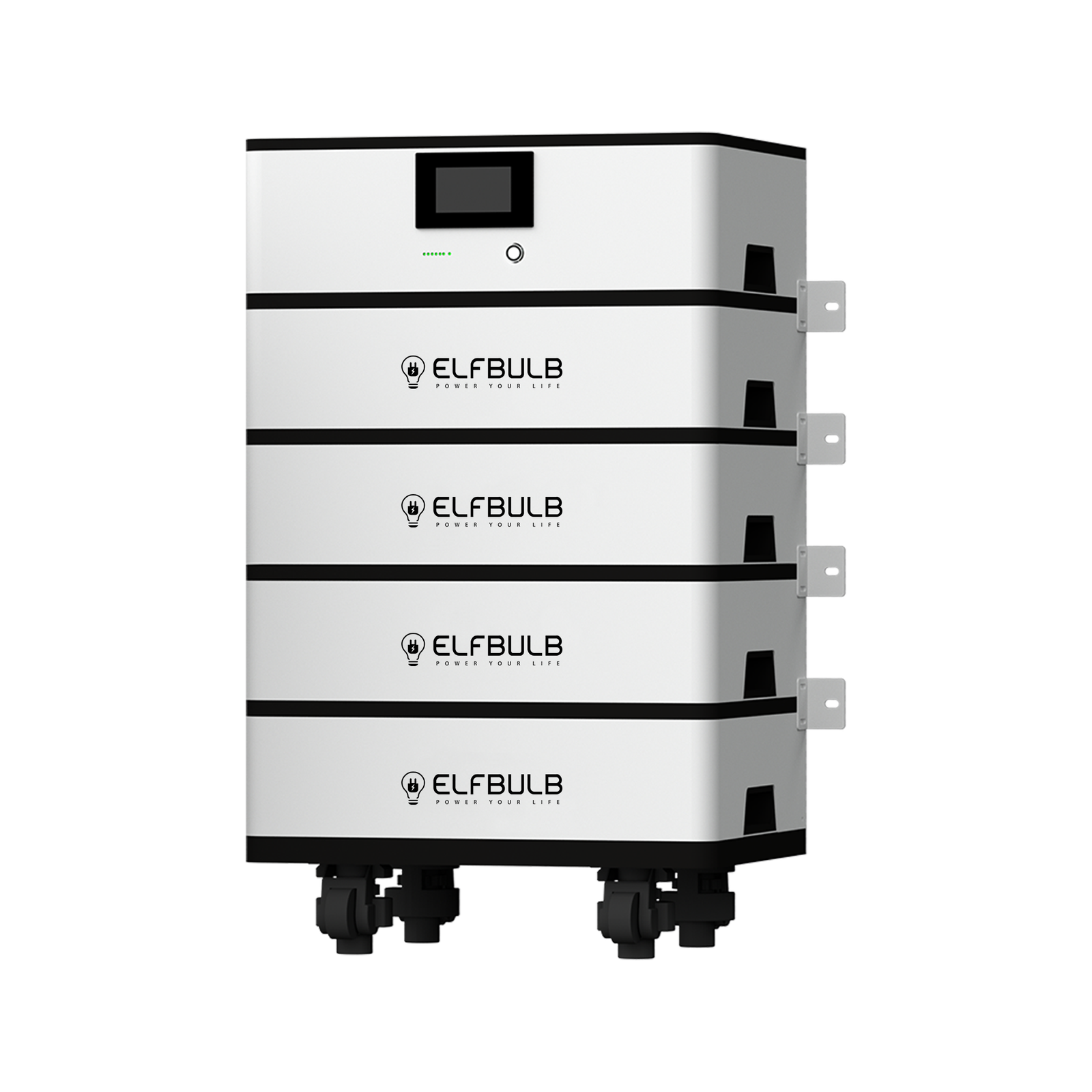

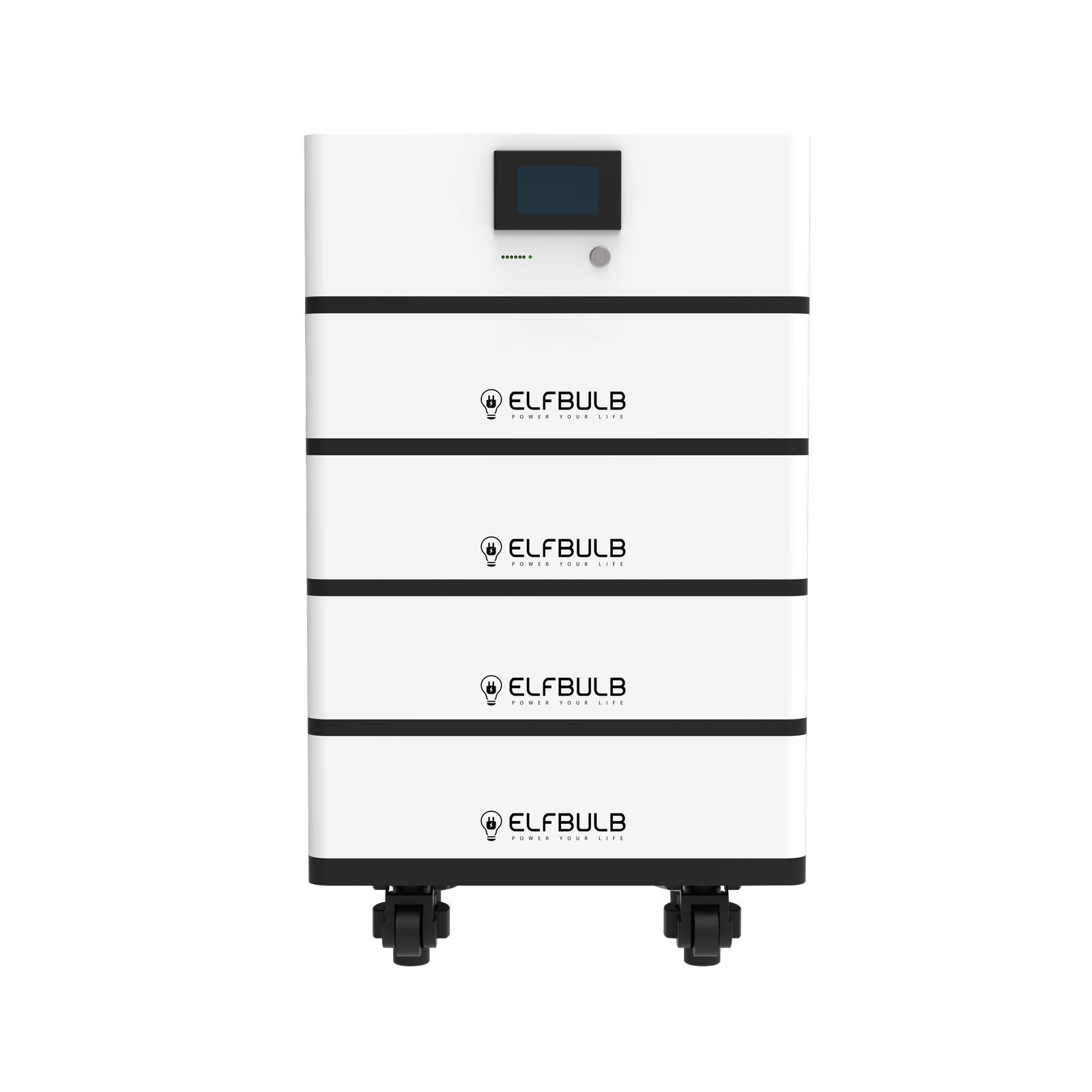

High Voltage Stacked LiFePO4 Battery Energy Storage 20KWH To 50KWH

  • 20KWH to 50KWH
  • High voltage controller box
  • Uninterruptible power supply
  • Batteries can be stacked up to 10 units
MODEL EBH-1 (High Voltage Stacked Lithium Battery)
Battery System Capacity(kWh) 20.48 25.6 30.72 35.84 40.96
Battery System Voltage (V) 204.8 256 307.2 358.4 409.6
Battery System Capacity (Ah) 100
Single Battery Energy(kWh) 5.12
Single Battery Voltage (V) 51.2
Single Battery Capacity (Ah) 100
Battery Module Quantity (pcs) 4 5 6 7 8
Battery System Charge Cut off Voltage (V) 233.6 292 350.4 408.8 467.2
Discharge & Charge Current (Amps, Standard) 20
Discharge &Charge Current (Amps, Rated) 50
Discharge &Charge Current (Amps,Max.15min) 100
Battery System Discharge Lower Voltage (V) 192 240 288 336 384
Efficiency (% at 0.5C-rate) 95
Depth of Discharge (%) 95
Dimension(Not include base)(mm) 600*475*942 600x475x1300 600x475x1318 600x475x1506 600x475x1694
Weight(kg) 262 316 370 425 479
Communication RS485,CAN
Charging Temp Range(℃) 0~55
Disharging Temp Range(℃) -10~55
Certifications CE,MSDS,UN38.3
