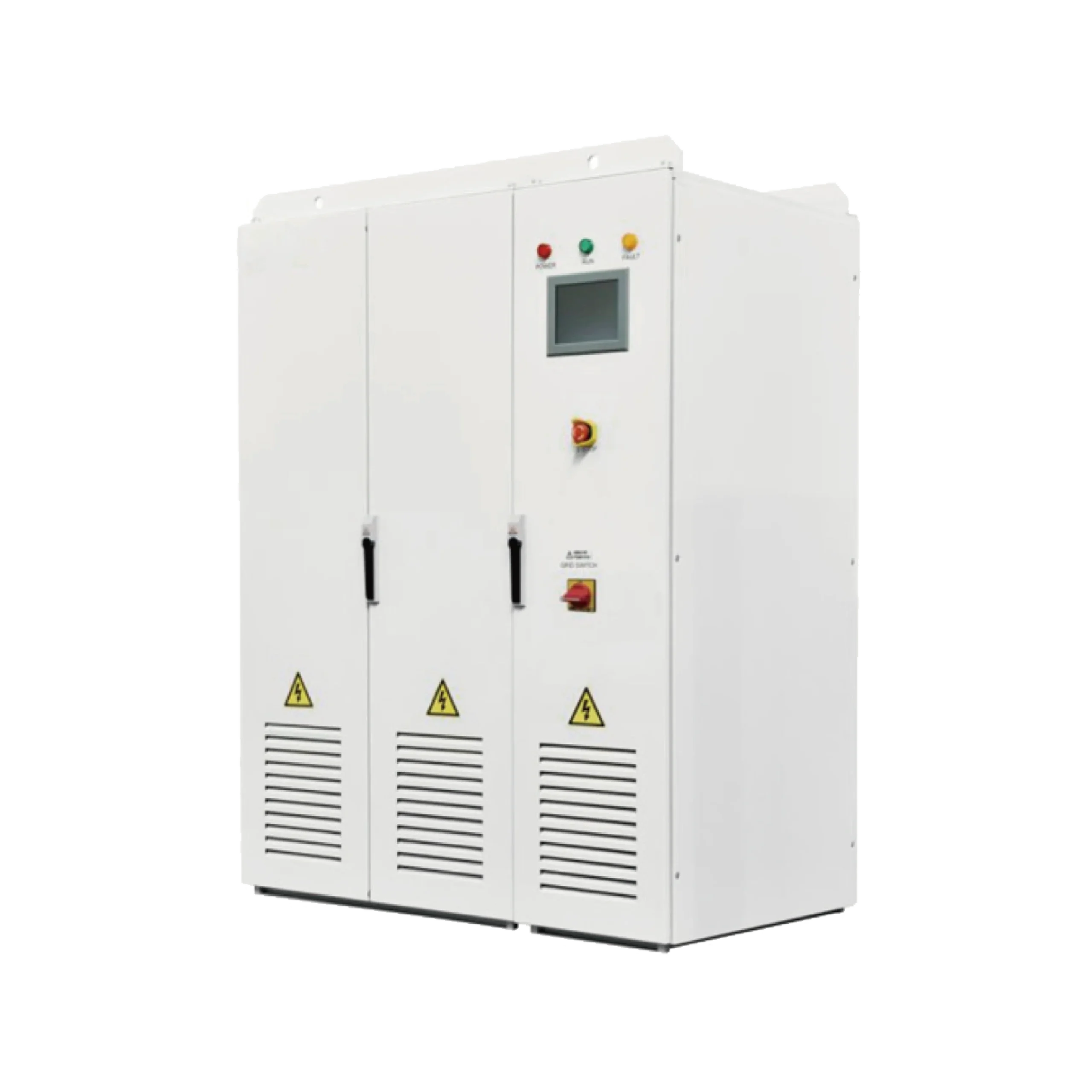

Parameters
| Product Model | TPCS2-500-N32 | TPCS2-630-N32 |
| AC side output parameters | ||
| Rated output power | 500kW | 630kW |
| ACinput | Three-phase three-wire | Three-phase three-wire |
| Rated output Votage | 360V-440V | 360V-440V |
| Overload Capacity | 110%overload | 110%overload |
| Rated grid frequency | 50Hz | 50Hz |
| Frequency range | 45-55Hz(Can set) | 45-55Hz(can set) |
| THD | ≤2.5%(Rated output power) | ≤2.5%(Rated output power) |
| Power Factor | 0.9(Ahead of thetimes)-0.9(Hysteresis) | |
| PCS protectlon | ||
| PCS protection | Have | Have |
| DC side parameters | ||
| DCoperating voltage range | 580～850Vdc | 580-850Vdc |
| Max DC power | 550kW | 700kW |
| Max DC current | 1000A | 1000A |
| Voltage stabilization accuracy | ±1% | ±1% |
| Steady flow accuracy | ±2% | ±2% |
| Efficiency | ||
| Max conver sion efficiency | >99% | >99% |
| Basic Parameters | ||
| Isolation transformer | No | No |
| IP grade | IP20 | IP20 |
| Operating temperature | 30℃-65℃(>50℃ Derating) | -30℃-65℃(>50℃ Derating) |
| Relative humidity | 095%(No condensation) | 0-95%(No condensation) |
| Cooling method | Forced air cooling(intelligent fan speed regulation) | |
| Size(Lx Hx D) | 1250x1786x800mm | 1250x1786x800mm |
| Weight | 1000kg | 1000kg |
| Maximum operating altitude | 3000m | 3000m |
| Screen | 8inch touch screen | Binch touch screen |
| Communication protocol (optional) | Modbus-RTU/Modbus-TCP/ IEC61850/IEC104 | Modbus-RTU/Modbus-TCP/ IEC61850/IEC104 |
| Communication method | RS485/Ethernet | RS485/Ethernet |
| Standard | GB/T 34120-2017,IEC62477-1, EN61000-6-2:2005,EN61000-6- 4:2007/A1:2011 | GB/T 34120-2017,IEC62477-1, EN61000-6-2:2005,EN61000-6- 4:2007/A1:2011 |
Features
BESS offers millisecond-level power regulation and precise frequency and voltage control, significantly boosting grid resilience and reliability, and improving overall power quality.
Acting as a virtual transmission line, BESS alleviates grid congestion and boosts existing asset utilization, helping you defer or avoid costly transmission and distribution(T&D) infrastructure expansion.
Highly dispatchable, BESS allows you to efficiently participate in ancillary service markets and leverage peak-to-off-peak arbitrage, creating diversified revenue and boosting economic efficiency.
In events like main grid failures, BESS serves as a highly reliable backup power source, providing seamless, uninterruptible power to ensure critical equipment remains operational, guaranteeing ultimate high availability.
Applications
Megawatt-Scale Battery Energy Storage Systems (BESS) are large-capacity battery installations capable of storing and dispatching electricity at a megawatt level. Essential for modern grids, they stabilize power, integrate renewables, and provide reliable backup, optimizing energy flow and grid efficiency.
